OSGPGlass Fibre Reinforced Polyester(GRP)BASICSPECIFICATION
Application:
· The material of OSGP is gland fibre reinforced polyester.
· Black color is only available with explosion proof.

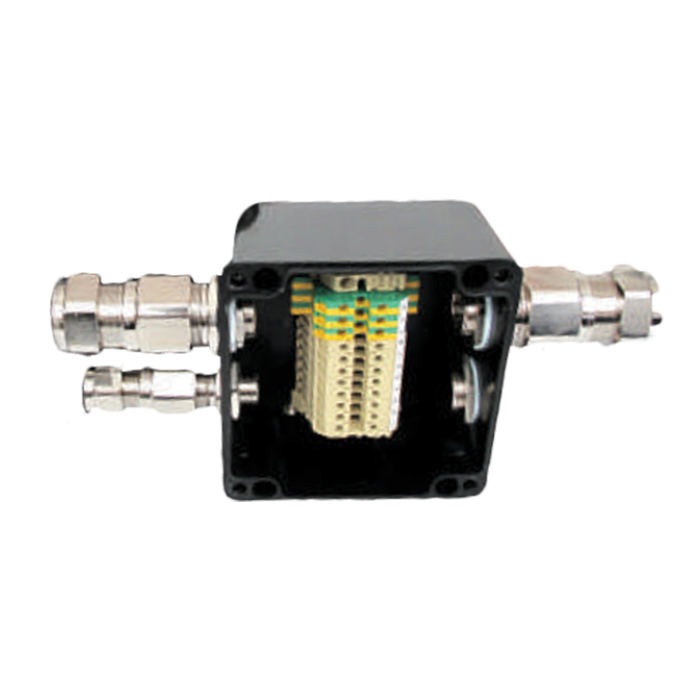

· Cable Gland and Junction Box can be ordered at one house.
· Silicon gasket is applied for longer last.
· Instrinc safety(Ex ia) can be applied.
· All accessories of Junction Box is available.
· Control Junction Box can be obtained at request. (Unit Certificate)Compliance Standard
IEC/EN 60079-0/60079-7-60079-11/60079-31
ATEX Certification
IECEx Certification
KCS Certification
TR CU Certification
Code of Protection
Ex eb IIC Gb, Ex tb IIIC T57℃/T72℃
Operating Temperature
-60℃ ~ 110℃
Ambient Temeperature
-60℃ to +40℃ for T6/T57℃
-60℃ to +55℃ for T5/T72℃
Regulation
Zone 1, 2, 21&22 Gas Group IIA, IIB and IIC
Ingress Protection
IP66 / 67
Junction Box Material
Glass Fibre Reinforced Polyester(GRP)
Gasket Material
Silicon Rubber
Mounting
Integral 6mm clearance holes moulded into the body
Earthing
Optional M8 internal/external earth stud, brass or stainless steel
UV Protection
1000hr (IEC 60079-0 26.10)
Impact Resistance
7Nm(EN50014)

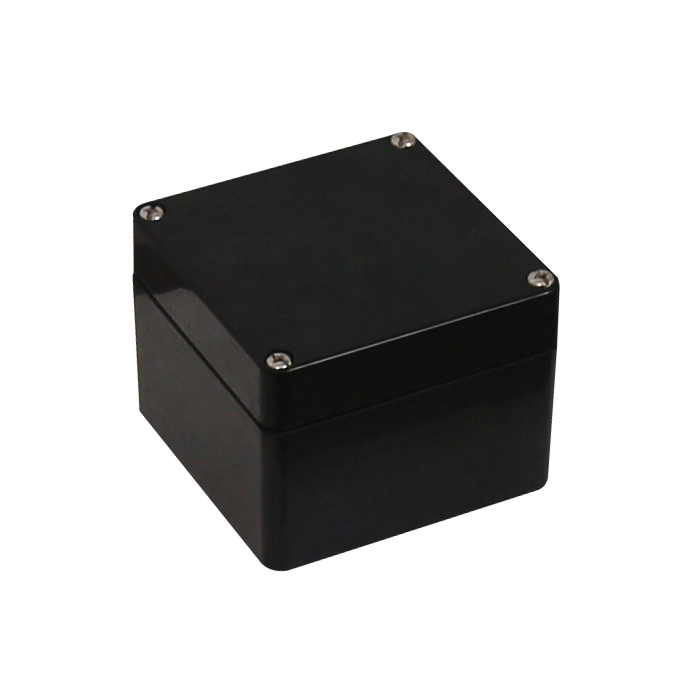

Color
RAL 9005 Black
Surface Insulation Resistance
106Ohm < black <109Ohm UV Protection
Earth Plate
Optional at request
Raw Material
Sheet Molding Compound (SMC)
