Application

· Used for installation of cable glands

· Applicable Products

  - OS-E1UF

  - OS-A2F-U Body

  - OS-A2F-U Nipple

  - Lock nut​

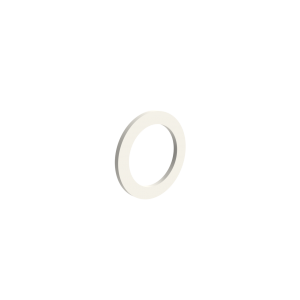

Application: Sealing Washer

· Sealing for IP Grade
· Material : Nylon, PTFE(Teflon)
· Not selling separately with glands

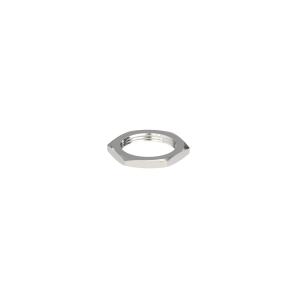

Application: Lock Nut

· Secure a cable gland in position of the equipment
· Material : Nickel plated brass(Standard),

  Brass(only), Stainless steel(316L)

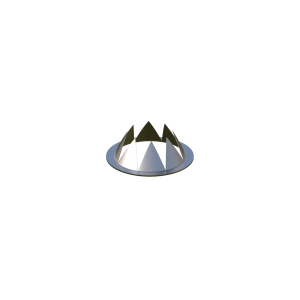

Application: : Lead Sheath Washer

· For use of lead sheathed cable
· Material : Nickel plated brass

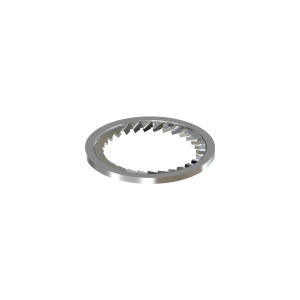

Application: Serrated Washer / Teeth Washer

· Provides means of prevention for loosening due to vibration
· Material : Stainless steel(316L)


Application: Shroud

· Provide means of protection for additional IP and corrosion
· Material : PCP(CR70) or PVC

· Thermal endurance tested (-67℃ ~ 130℃)

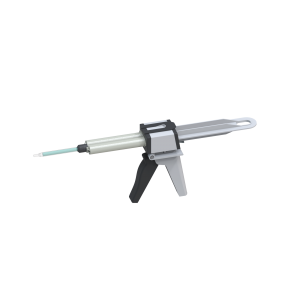

Application: Liquid Compound Resin

·  EZsafe is easy and safe for installation
·  Requires compound gun to install
·  Material: Epoxy
·  Volume : 50mml
· OSCG provided nozzle must be used

  waste compound by pressing the gun

  full 2 times before use for equivalent mixing

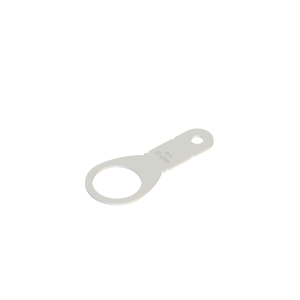

Application: Earth Tag

· Provides an earth bonding
· Nickel plated brass(standard), Brass(only), Stainless steel(316L)

Application : Breather Drains

· Provides draining water from an enclosure and breathing air out for ventilation

Application: Elbow(90˚)

· Provides a means of bending due to crawlspace


Application: Stopping Plug

· Provides a means of blanking unused or spare entries


Application: Stopping Plug

· Provides a means of blanking unused or spare entries


Application: Stopping Plug

· Provides a means of blanking unused or spare entries


Application: Reducer

·  Provides a means of thread conversion

Application:  Insulated Adaptor

· Provides insulation for short circuit for sensitive equipment

Application: Adaptor

· Provides a means of thread conversion
