Application:
· The material of OS-ITOP is SS316L. Other materials can be produced at request
· OS-ITOP Mounting is designed to be easier and faster installation at site
· Type A is designed to prevent from water getting into Junction Box by flat compression technique
· Cable Gland and Junction Box can be ordered at one house
· Silicon gasket is applied for longer last
· All accessories of Junction Box is available
· Control Junction Box can be obtained at request (Unit Certificate)
· Removable gland plate is applied
Operating Temperature |
-60℃ ~ 110℃ |
Ingress Protection |
IP66 |
Junction Box Material |
Stainless steel 304, 316, 316L with minimum thickness 1.5mm |
Gasket Material |
CR |
Mounting | External mounting lug with 12mm holes of 4ea or 6ea at size |
Earthing |
Optional M8 internal/external earth stud, brass or stainless steel |
Surface finish |
Hairline(standard), electro polishing, etc. |
Impact Resistance |
7Nm(EN50014) |

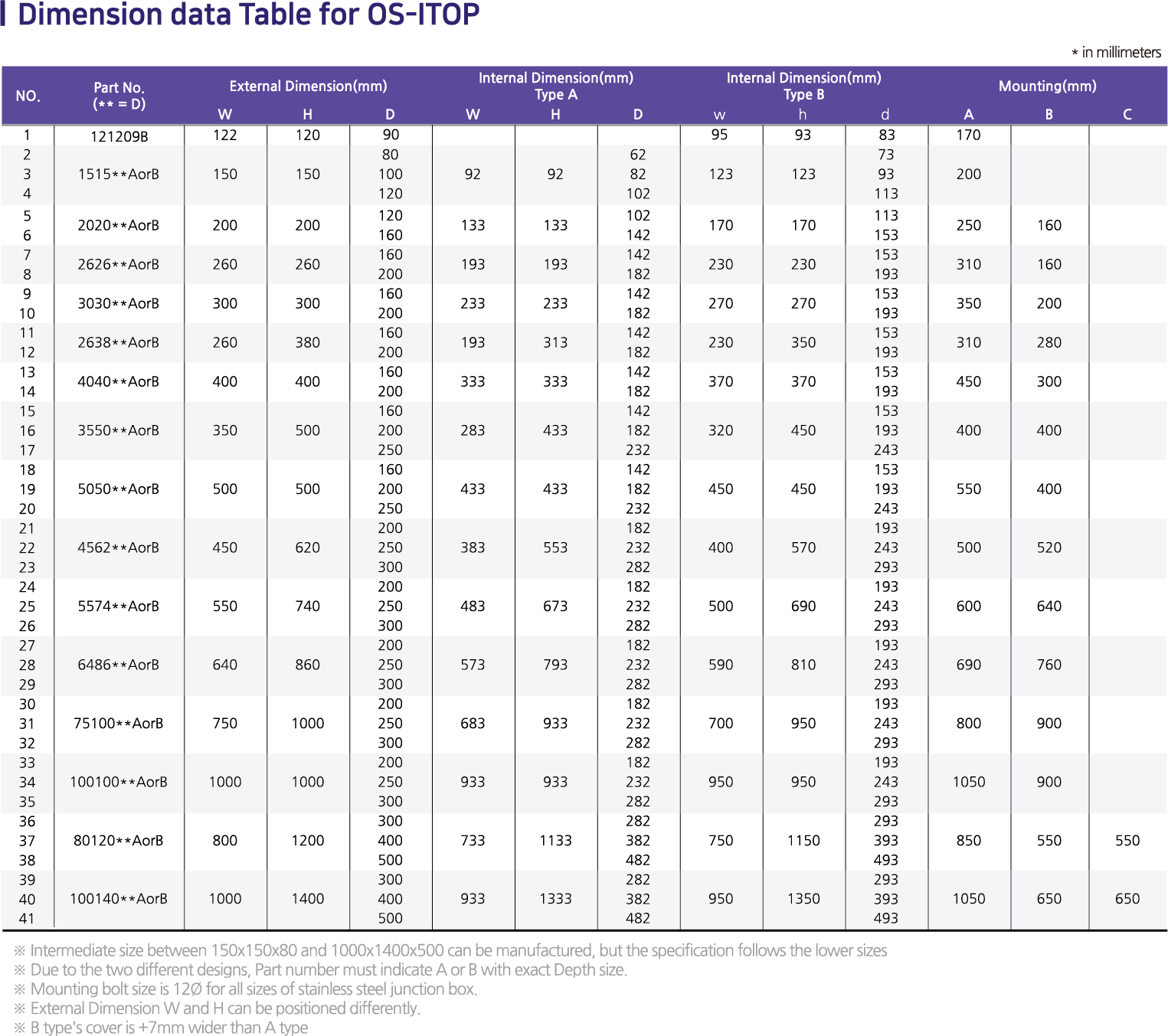

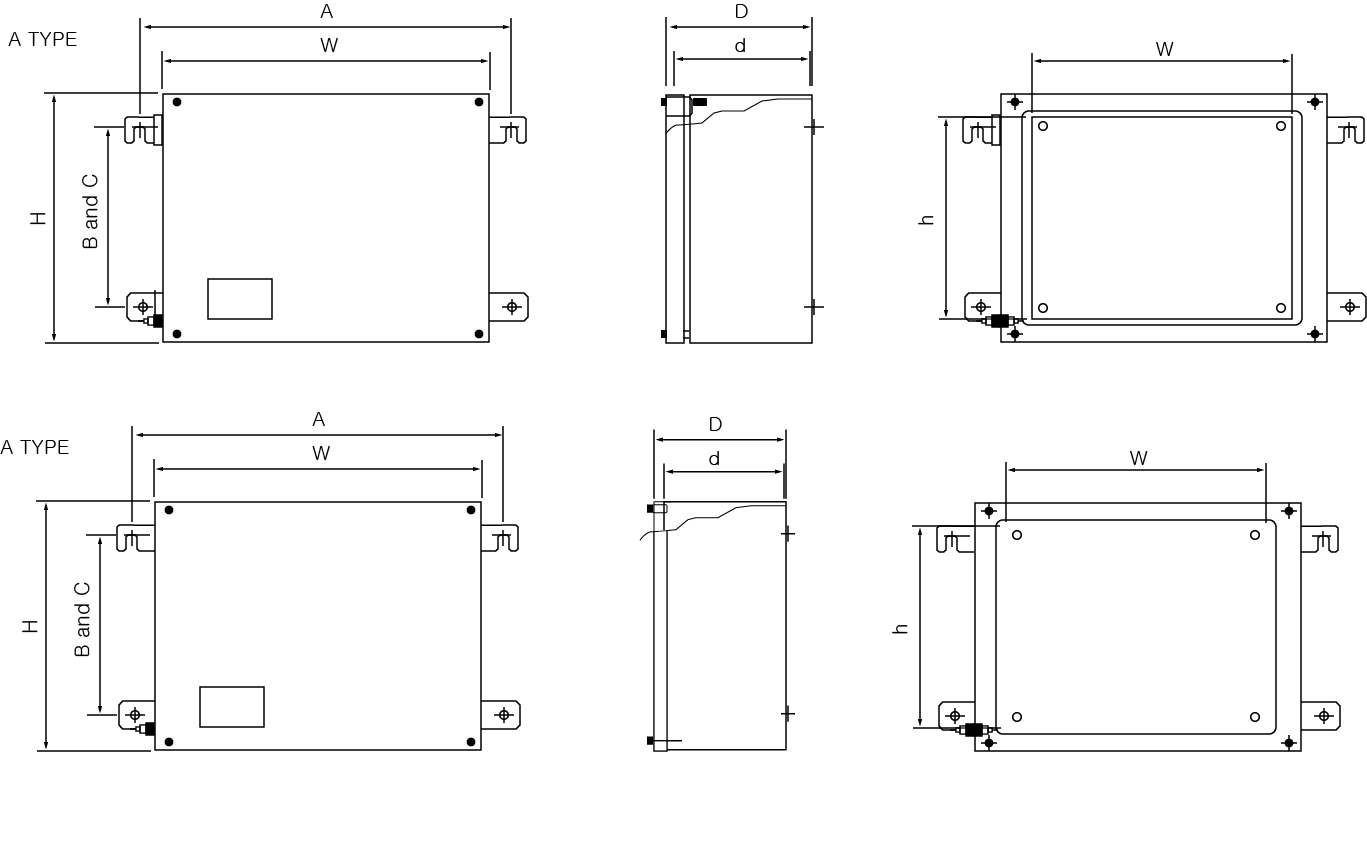

DIMENSION
