Design Specification

 BS 6121, IEC 62444, EN 50262

 Compliance Standard

 IEC/EN 60079-0, 1, 7, 31

 ATEX Certification

 Presafe 17 ATEX 11454X

 IECEX Certification

 IECEx PRE 17.0062X

 KCS Certification

 18-KA2BO-0364~71X(KOR),

 18-KA2BO-0364~71X(ENG)

 TR CU Certification

 RU C-KR.AA87.B.01105

 Code of Protection

 II2G Ex db IIC Gb, Ex eb IIC Gb, II2D Ex tb IIIC Db

 Operating Temperature

  -60°C -110°C

 Regulation

 Zone 1 & 2, Gas Group IIA, IIB and IIC, Dust Group IIIA, IIIB and IIIC

 Ingress Protection

 IP 66 / 67

 IP 68 available when requested only

 Applicable Cable Specification

 Non-armoured cable, Braided armoured cable

 Gland Material

 Nickel Plated Brass(Standard), Brass(Only), Stainless Steel(316L)

 Gasket (washer)

 Nylon(Standard), PTFE-Teflon(Option)

 Packing

 Silicone

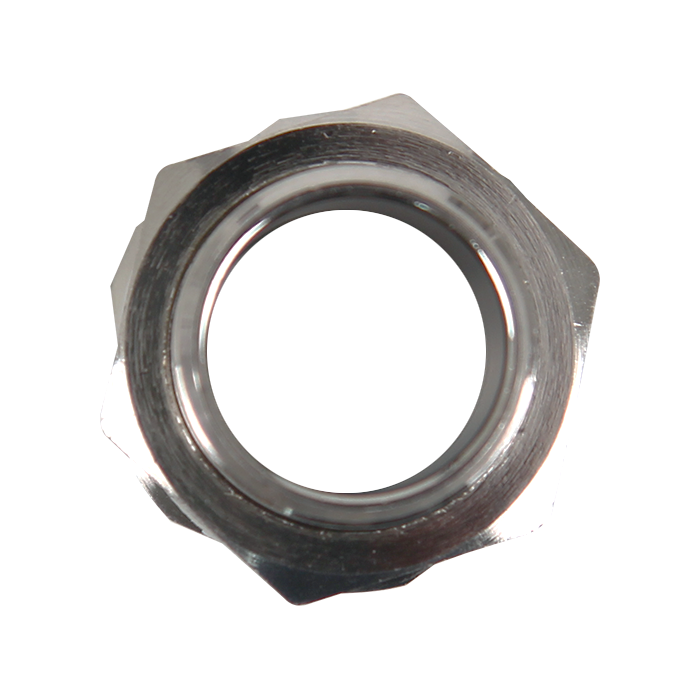

 Accessories (optional)

 Lock nut, Sealing washer, Earth tag, Shroud, Serrated washer
