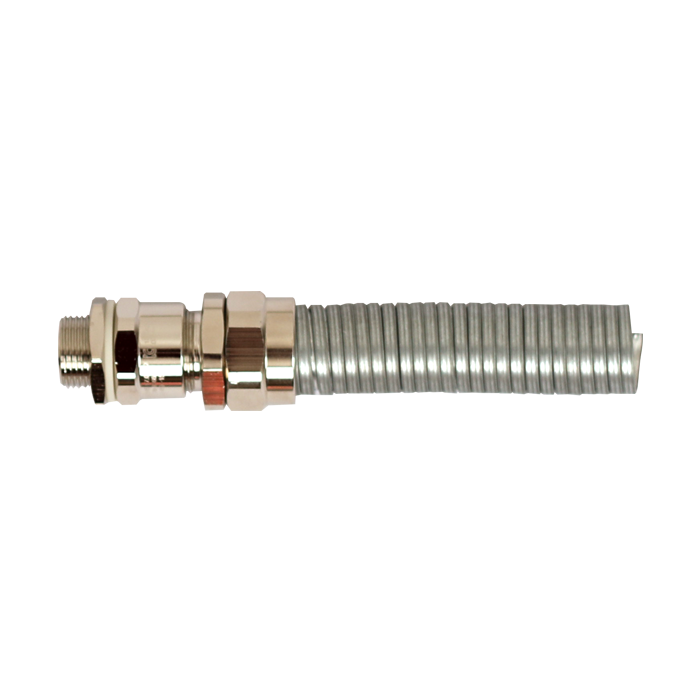

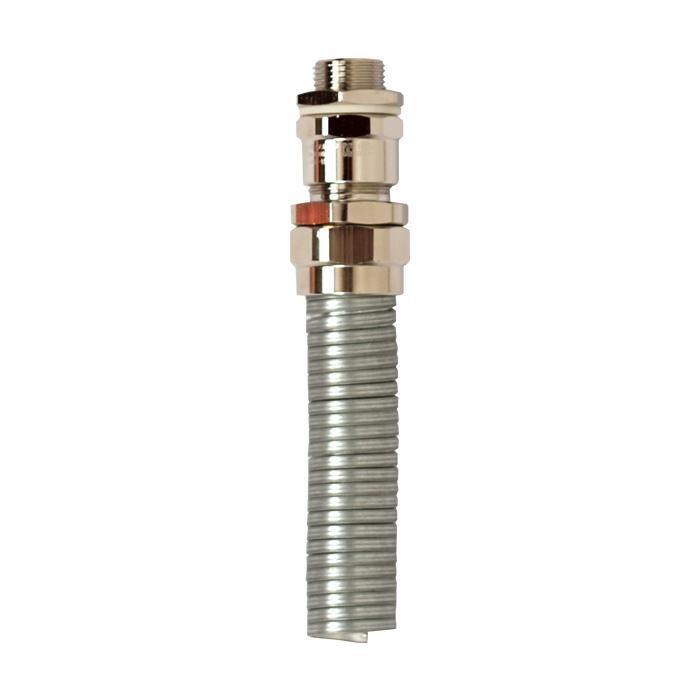

OS-A2F-UHMHConduitBASICSPECIFICATION
Application : Heat Tracing/ Flat Form Cable with Metal Hose
· For use with flat form non-armoured & braided armoured cable
· Increased Safety
· Suitable for Heat Tracing / Flat Form Cable
· Single CompressionDesign Specification
BS 6121, IEC 62444, EN 50262
Compliance Standard
IEC/EN 60079-0, 1, 7,31
ATEX Certification
IECEX Certification
KCS Certification
TR CU Certification
Code of Protection
II2G Ex eb IIC Gb, II2D Ex tb IIC Db
Operating Temperature
-60°C -110°C
Regulation
Zone 1 & 2, Gas Group IIA, IIB and IIC, Dust Group IIA, IIB and IIC
Ingress Protection
P66
Applicable Cable Specification
Heating cable
Gland Material
Nickel plated brass(standard), brass(only), Stainless steel(316L)
Gasket (washer)
Nylon(Standard), PTFE-Teflon(Option)
Packing
Silicone
Accessories (optional)
Secling Washer, lock nut, Earth Tag, Shroud, Serrated Washer
