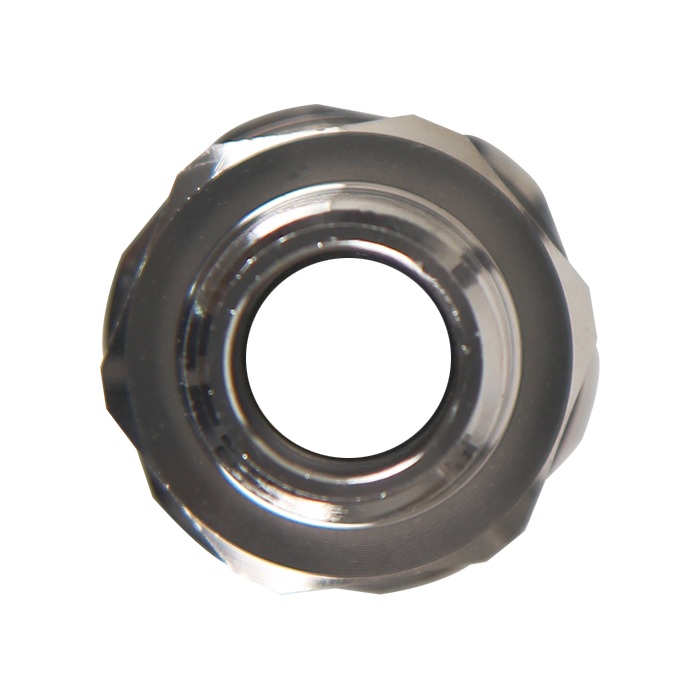

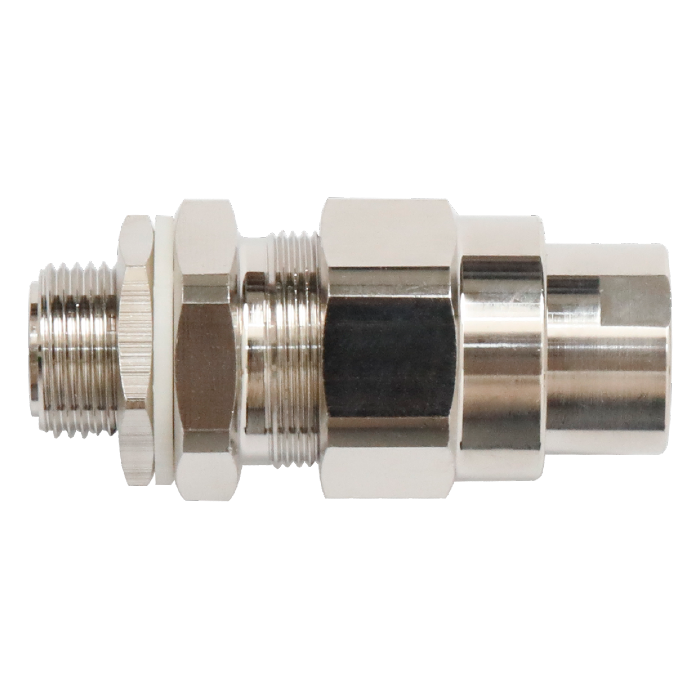

OS-EXBF-FConduitBASICSPECIFICATION
Application : Barrier Gland for Non-Armoured Cable
· For use with non-armoured & braided armoured cable
· Male&Female threads type· Ex ‘db’ barrier type
· Outdoor & Increased safety
· Reduce the effect of coldflow characteristics
· Liquid compound resin type· Flexible conduit provided when requested only
(refer to OSEP catalogue cut)
· OS-EXBF-F must be used with OSEZ
(refer to OSEZ catalogue cut)
Design Specification
BS 6121, IEC 62444, EN 50262
Compliance Standard
IEC/EN 60079-0, 1, 7, 31
ATEX Certification
IECEx Certification
KCS Certification
Code of Protection
II2G Ex db IIC Gb, Ex eb IIC Gb, II2D Ex tb IIIC Db
Operating Temperature
-60˚C ~ 110˚C
Regulation
Zone 1, 2, 21&22, Gas Group IIA, IIB and IIC
Ingress Protection
IP 66/67
IP 68 available when requested only
Applicable Cable Specification
Non-armoured cable, Braided armoured cable
Gland Material
Nickel plated brass(standard),
Brass(only), Stainless steel(316L)
Gasket (washer)
Nylon(Standard), PTFE-Teflon(Option)
Packing
Silicone
Accessories (optional)
Lock nut, Sealing washer, Earth tag, Shroud, Serrated washer
