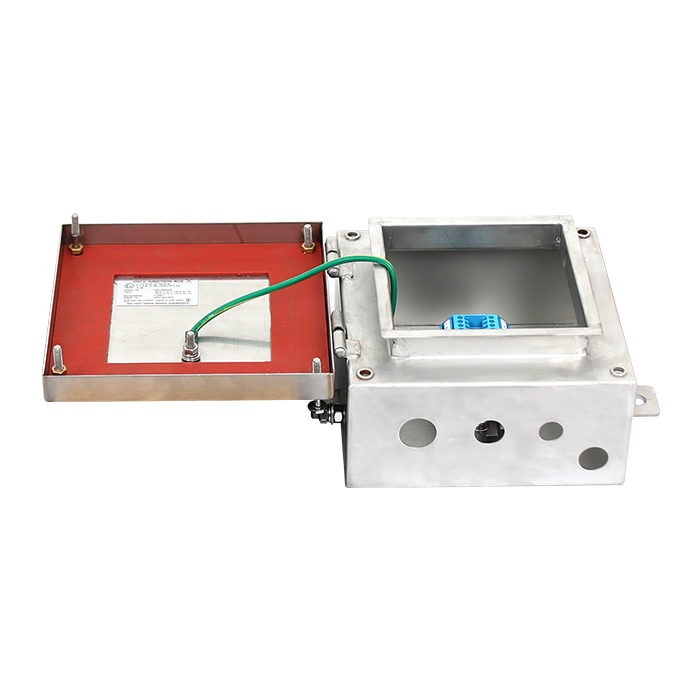

A Type

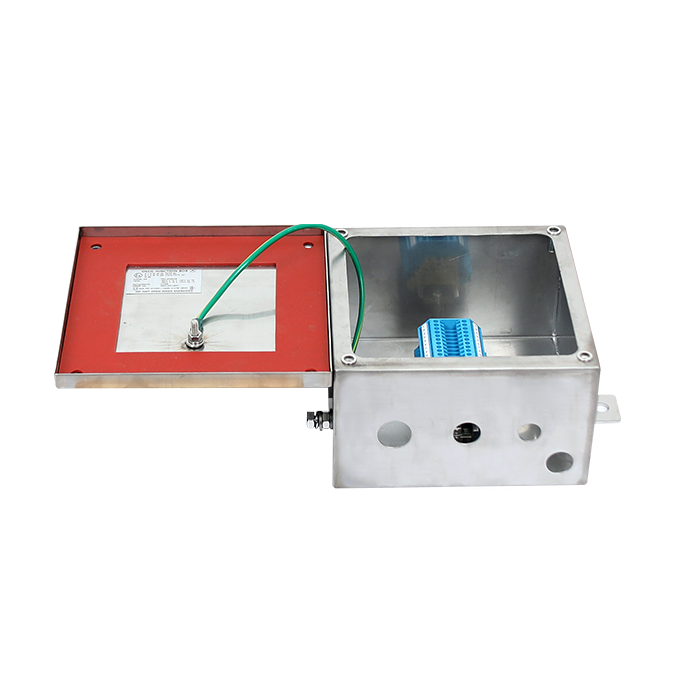

B Type
-
OS-ITOPStainless SteelBASICSPECIFICATION
Application:
· The material of OS-ITOP is SS316L. Other materials can be produced at request.
· OS-ITOP Mounting is designed to be easier and faster at site.
· Type A is designed to prevent from water getting into Junction Box by flat compression technique.
· Cable Gland and Junction Box can be ordered at one house.
· Silicon gasket is applied for longer last.
· All accessories of Junction Box is available.
· Control Junction Box can be obtained at request. (Unit Certificate)
· Removable gland plate is appliedOperating Temperature
-60℃ ~ 110℃
Ingress Protection
IP66
Junction Box Material
Stainless steel 304, 316, 316L with minimum thickness 1.5mm
Gasket Material
Silicon Rubber
Mounting
External mounting lug with 12mm holes of 4ea or 6ea at size
Earthing
Optional M8 internal/external earth stud, brass or stainless steel
Surface finish
Hairline(standard), electro polishing, etc.
Impact Resistance
7Nm(EN50014)
