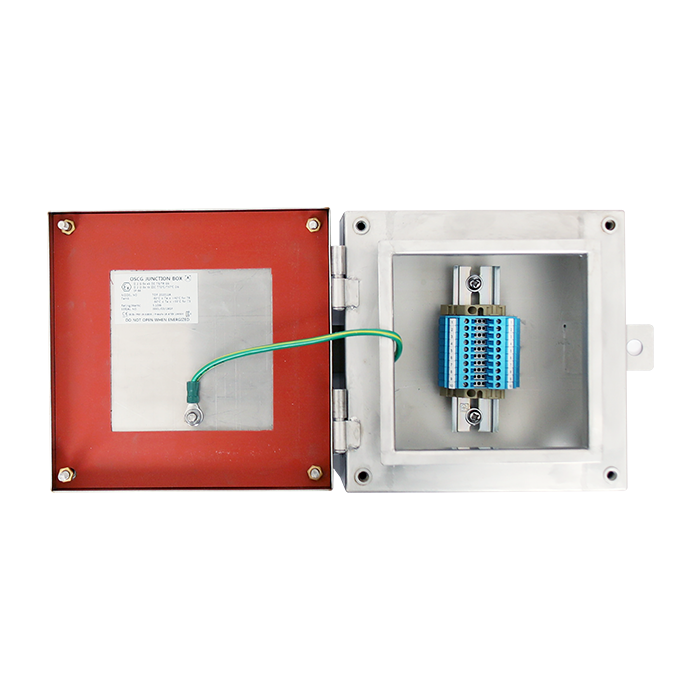

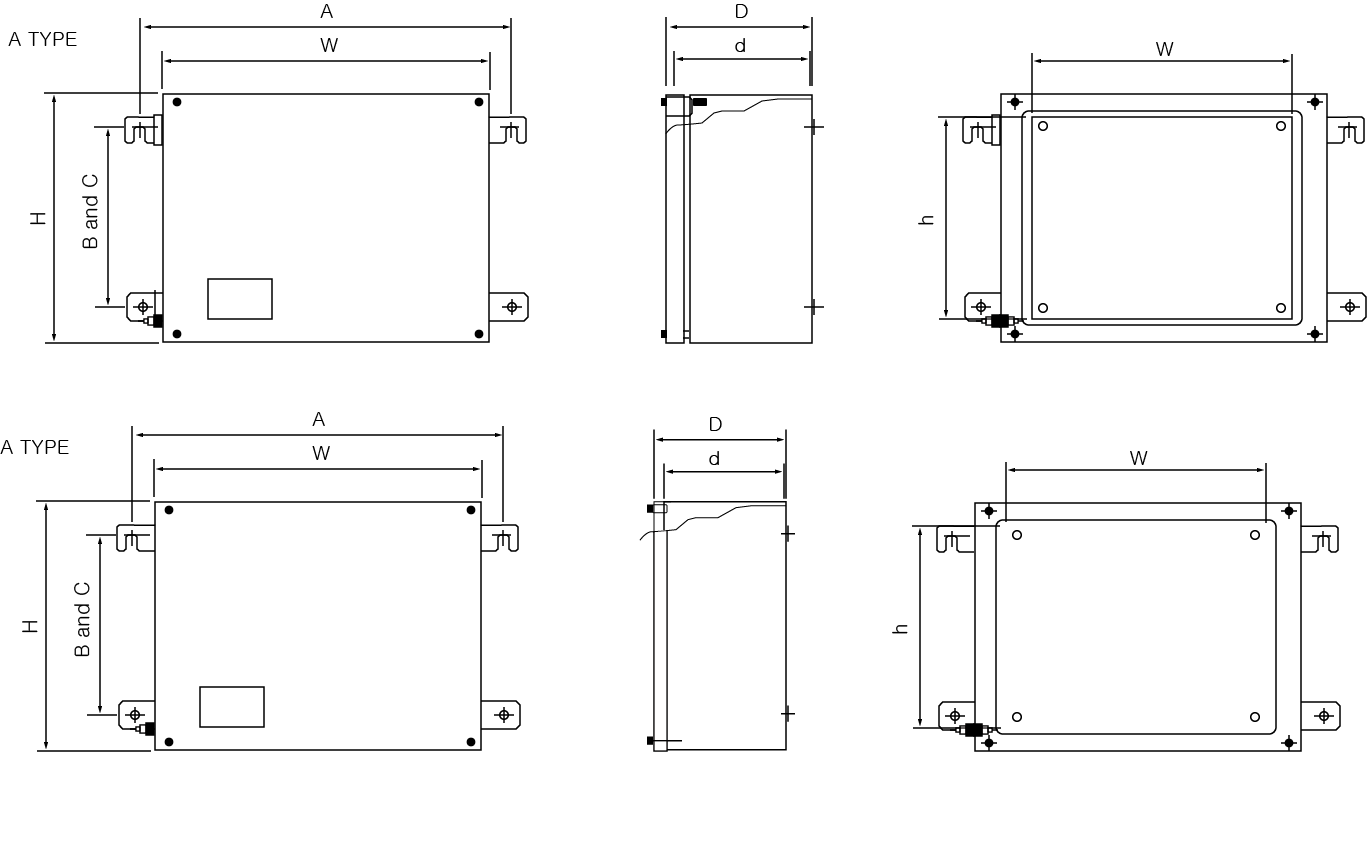

A Type

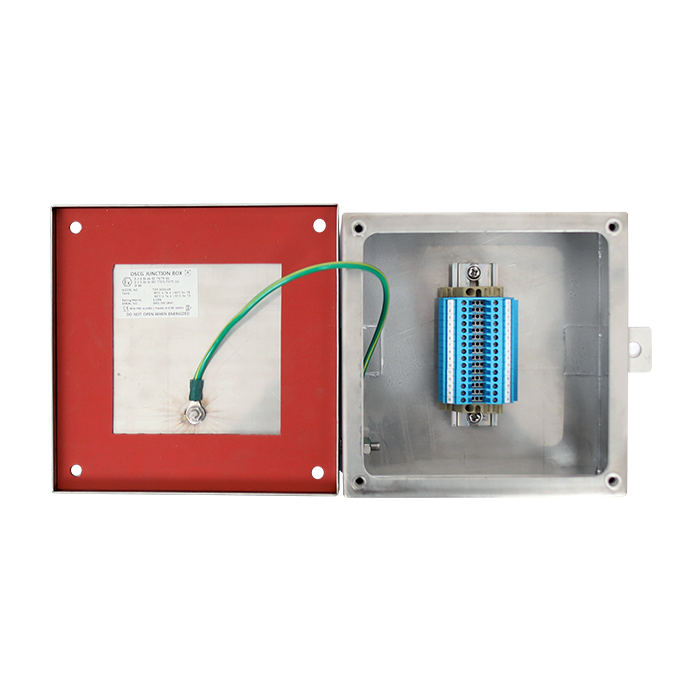

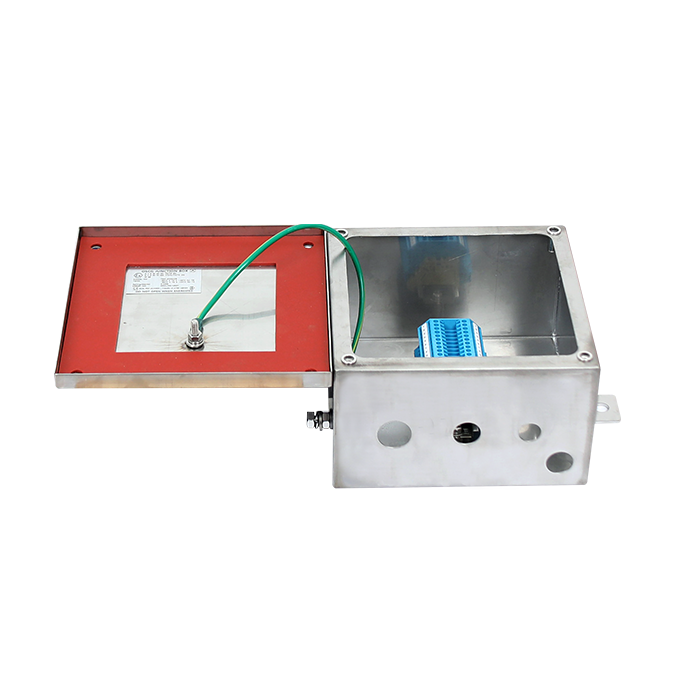

B Type
-

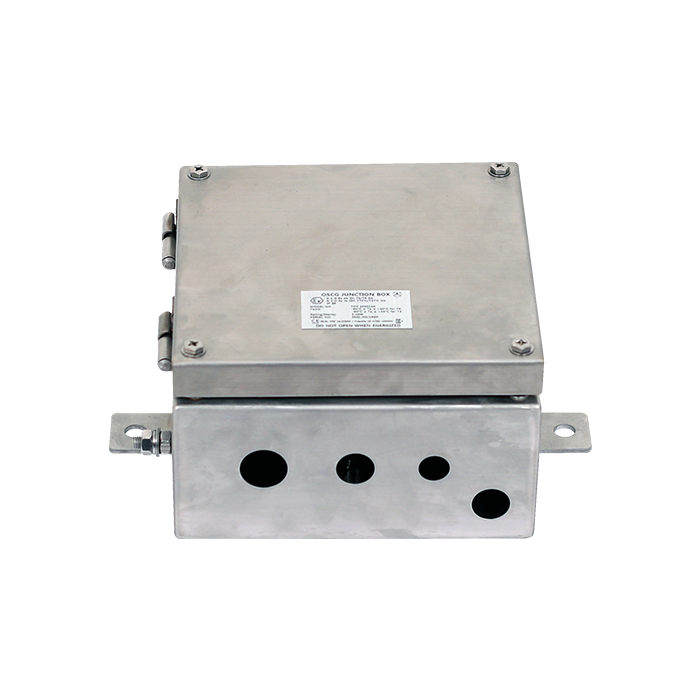

OS-TOPStainless SteelBASICSPECIFICATION
Application: Any Type of Armoured Cable
· The material of OS-TOP is SS316L. Other materials can be produced at request.
· OS-TOP Mounting is designed to be easier and faster at site.

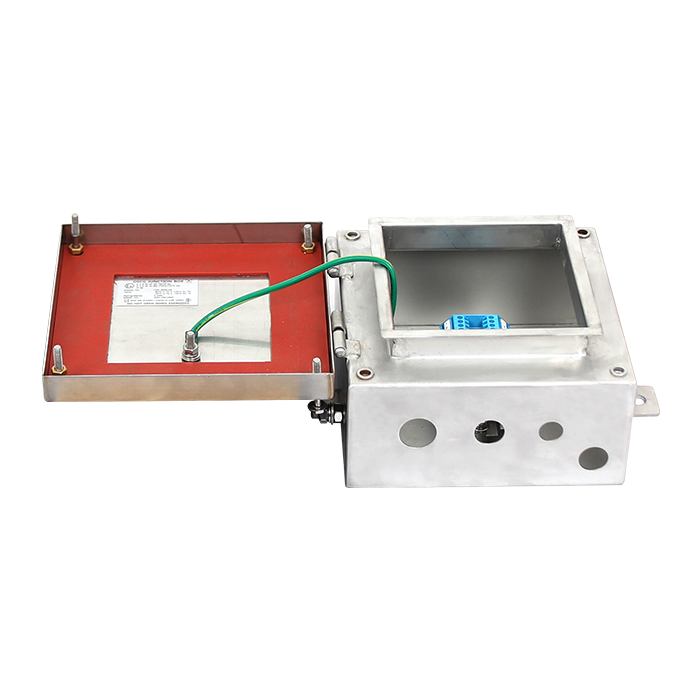

· Type A is designed to prevent from water getting into Junction Box by flat compression technique.
· Cable Gland and Junction Box can be ordered at one house.
· Silicon gasket is applied for longer last.
· Instrinc safety(Ex ia) can be applied.
· All accessories of Junction Box is available.
· Control Junction Box can be obtained at request. (Unit Certificate)
· Removable gland plate is applied
Compliance Standard
IEC/EN 60079-0/60079-7-60079-11/60079-31
ATEX Certification
IECEx Certification
Code of Protection
Ex eb IIC Gb, Ex tb IIIC T57℃/T72℃
Operating Temperature
-60℃ ~ 110℃
Ambient Temeperature
-60℃ to +40℃ for T6/T57℃
-60℃ to +55℃ for T5/T72℃
Regulation
Zone 1, 2, 21&22 Gas Group IIA, IIB and IIC
Ingress Protection
IP66
Junction Box Material
Stainless steel 304, 316, 316L with minimum thickness 1.5mm
Gasket Material
Silicon Rubber
Mounting
External mounting lug with 12mm holes of 4ea or 6ea at size
Earthing
Optional M8 internal/external earth stud, brass or stainless steel
Surface finish
Hairline(standard), electro polishing, etc.
Impact Resistance
7Nm(EN50014)
