Design Specification

 BS 6121, IEC 62444, EN 50262

 Compliance Standard

 IEC/EN 60079-0, 1, 7,31

 ATEX Certification

 Presafe 17 ATEX 11486X

 IECEX Certification

 IECEX PRE 17.0083X

 KCS Certification

 18-KA2BO-0220X,0221X(KOR),

 18-KA2BO-0220X,0221X(ENG)

 TR CU Certification

 RU C-KR.AA87.B.01239/23(RUS)

 RU C-KR.AA87.B.01239/23(ENG)

 PESO Certification

 P465223

 NR TL(UL, CSA) Certification

 LR1634-4

 CCC Certification

 2023012313575109

 Code of Protection

 II2G Ex eb IIC Gb, II2D Ex tb IIC Db

 (NEC : AEx eb IIC Gb, AEx tb IIIC Db)

 Operating Temperature

 -60°C ~ 110°C

 Ambient temperature range(NEC)

 Ta = -60°C to +60°C

 Regulation

 Zone 1 & 2, Gas Group IIA, IIB and IIC, Dust Group IIIA, IIIB and IIIC

 NEC : Cl. I, Div.2, Gr. ABCD, Cl. II, Div 1, Gr. EFG; Cl. III, Div. 1

        (Cl. II, Div. 2, Gr. FG - Canada only)

 Ingress Protection

 IP66 (NEC : Type 4X)

 Applicable Cable Specification

 Heating cable

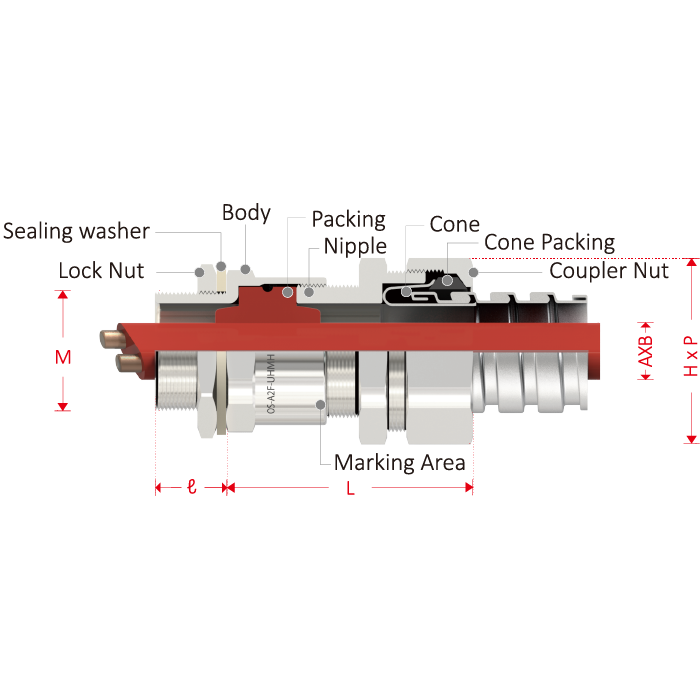

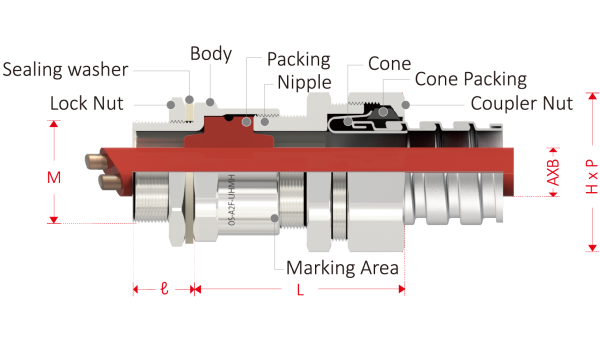

 Gland Material

 Nickel plated brass(standard), brass(only), Stainless steel(316L)

 Gasket (washer)

 Nylon(Standard), PTFE-Teflon(Option)

 Packing

 Silicone

 Accessories (optional)

 Sealing Washer, lock nut, Earth Tag, Shroud, Serrated Washer
